Description
Versatility and resistance

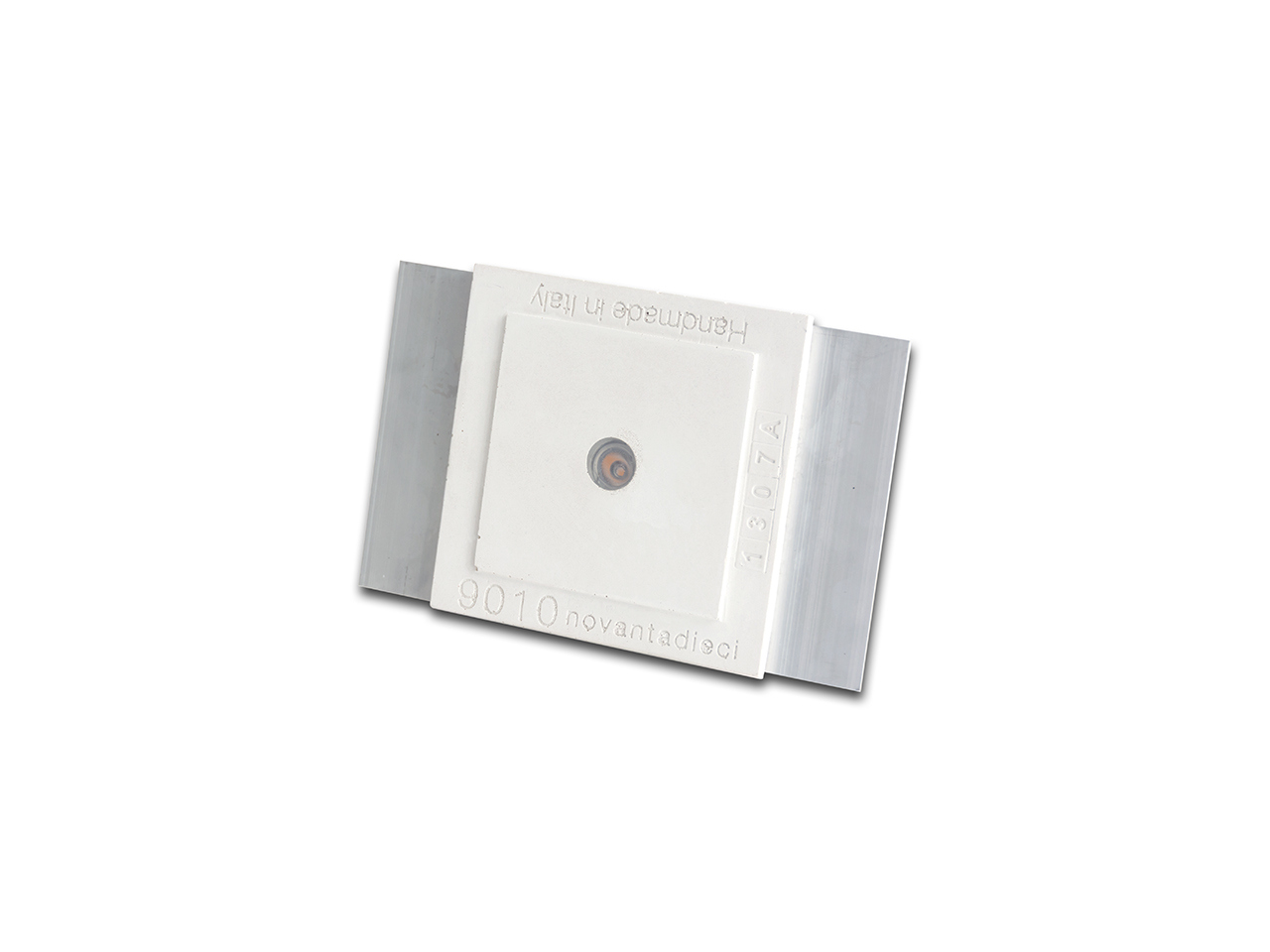

MINILED EST 1307 is a recessed ceiling light for outdoor and indoor use made of BETALY® in colour White 392. It can be installed either with a masonry counter-box or in an ultra-thin recess of only 30 mm between the plasterboard panels and the ceiling.

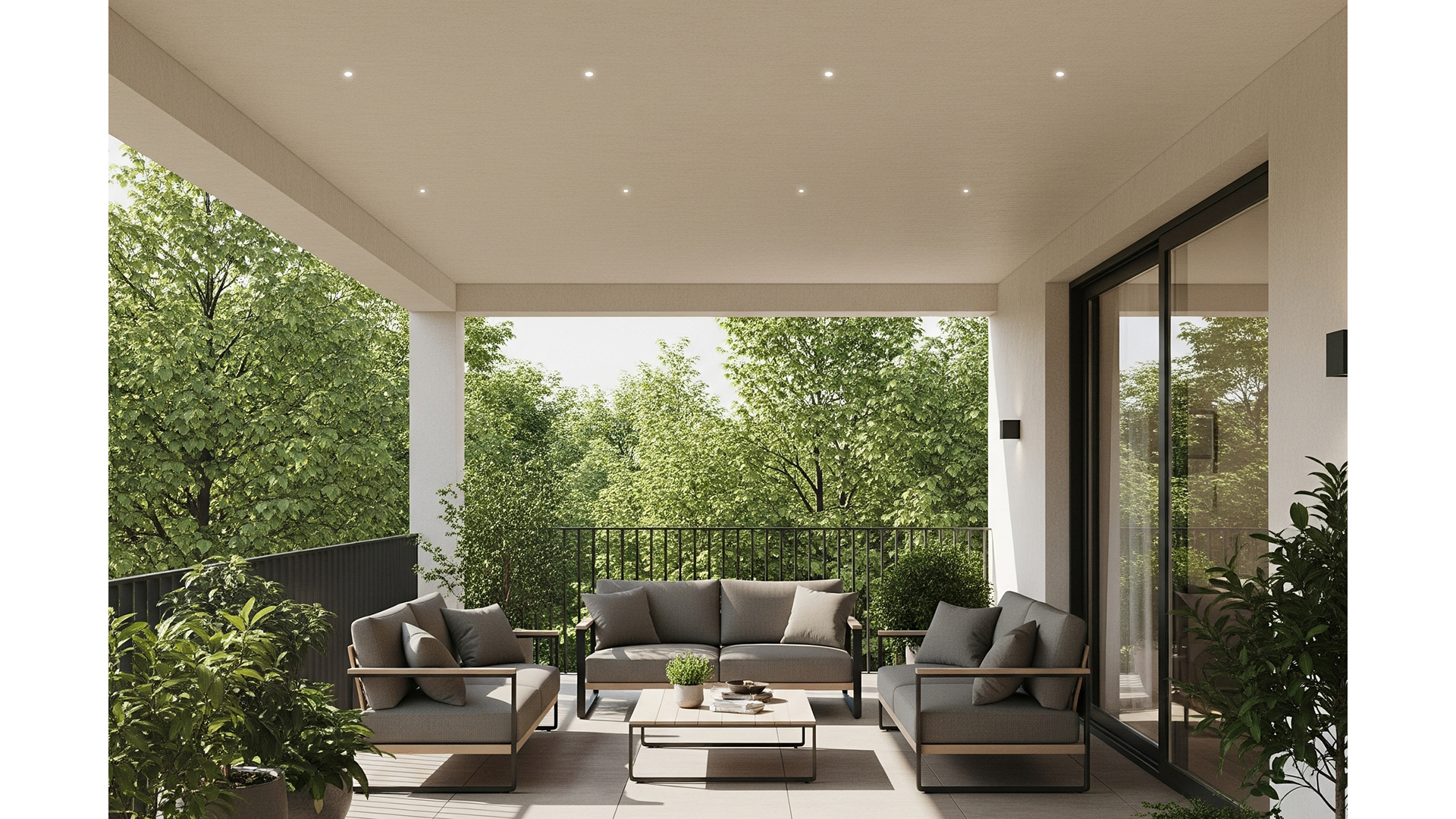

The BETALY® structure gives the product excellent resistance to atmospheric agents, while the silicone lens allows the product to achieve an IP65 protection rating, making it suitable for use in outdoor ceilings such as terraces or porches, but also in particularly humid indoor environments such as shower areas and saunas.
The 17 mm light hole allows it to blend perfectly into any environment. The LED source can be powered at different currents up to a maximum of 700 mA or 8.5 W, allowing you to choose the most appropriate light intensity, or to be dimmed with dimmable drivers, while the interchangeable lenses available in 4 apertures (20°, 30°, 40°, 50°) offer the possibility of adjusting the light beam even after installation, thus offering maximum flexibility.
Technical specifications
Variants
| Code | Electrical part | Description | Power supply | Driver |
|---|---|---|---|---|
1307A-27187 | LED - 8.5W - MAX 700mA | 2700K - 810lm - CRI90 - Lens 20° - Colors available in the Customization section | Remote driver, not included | |
1307A-30187 | LED - 8.5W - MAX 700mA | 3000K - 850lm - CRI90 - Lens 20° - Colors available in the Customization section | Remote driver, not included | |
1307A-40187 | LED - 8.5W - MAX 700mA | 4000K - 890lm - CRI90 - Lens 20° - Colors available in the Customization section | Remote driver, not included | |
1307A-27190 | LED - 8.5W - MAX 700mA | 2700K - 810lm - CRI90 - Lens 50° - Colors available in the Customization section | Remote driver, not included | |
1307A-27189 | LED - 8.5W - MAX 700mA | 2700K - 810lm - CRI90 - Lens 40° - Colors available in the Customization section | Remote driver, not included | |
1307A-27188 | LED - 8.5W - MAX 700mA | 2700K - 810lm - CRI90 - Lens 30° - Colors available in the Customization section | Remote driver, not included | |
1307A-30190 | LED - 8.5W - MAX 700mA | 3000K - 850lm - CRI90 - Lens 50° - Colors available in the Customization section | Remote driver, not included | |
1307A-30189 | LED - 8.5W - MAX 700mA | 3000K - 850lm - CRI90 - Lens 40° - Colors available in the Customization section | Remote driver, not included | |
1307A-30188 | LED - 8.5W - MAX 700mA | 3000K - 850lm - CRI90 - Lens 30° - Colors available in the Customization section | Remote driver, not included | |
1307A-40190 | LED - 8.5W - MAX 700mA | 4000K - 890lm - CRI90 - Lens 50° - Colors available in the Customization section | Remote driver, not included | |
1307A-40189 | LED - 8.5W - MAX 700mA | 4000K - 890lm - CRI90 - Lens 40° - Colors available in the Customization section | Remote driver, not included | |
1307A-40188 | LED - 8.5W - MAX 700mA | 4000K - 890lm - CRI90 - Lens 30° - Colors available in the Customization section | Remote driver, not included |
